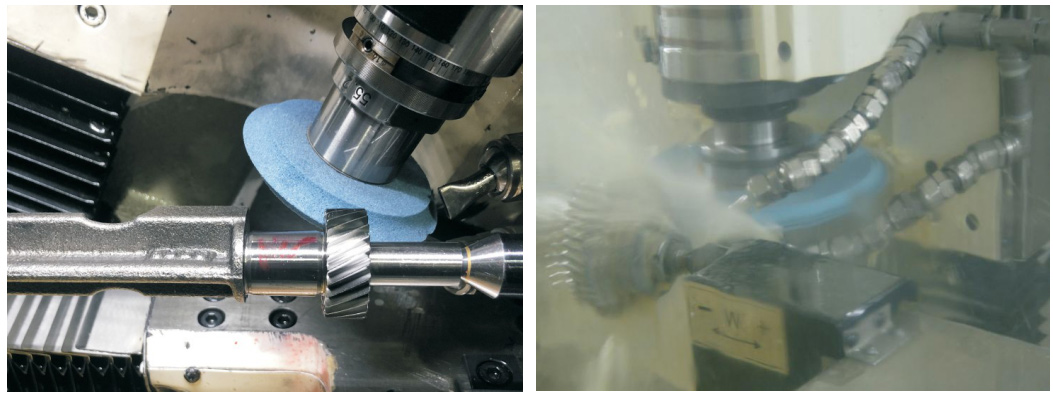

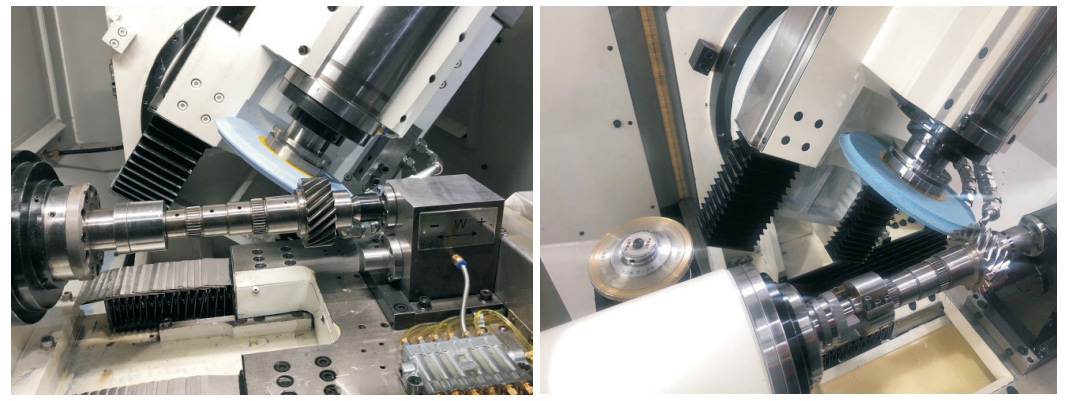

PG系列齒輪成形數控磨齒機，運用成形砂輪磨齒的原理，可磨削各種圓柱齒輪； 機床工件旋轉和分度軸采用直驅電機， 不僅精度高，效率高，而且徹底消除了機械磨損和反向間隙。當加工存在軸肩干涉的雙聯齒輪時，機床可使用Φ50mm的小砂輪磨削，具有良好的可達性。機床伺服尾座由手輪或者腳踏板控制，可以移動到不同位置依然保持精度，不需要重新校正頂尖的同心度， 方便切換不同長短的工件； 還可調節頂尖頂緊力的大小，有效抑制軸齒輪的變形
PG series CNC gear profile grinding machine, with forming grinding wheel, is excellent to grind kinds of spur gears and helix gears. The index and rotating function is based on direct-driving technology, without mechanical transmission erro, to ensure high grinding precision under high efficiency. For grinding the shaft gear with interference possibility, it is able to select small wheels. The tailstock is driven by
CNC servo motor, easily to adjust the best tightening force to restrain shaft gear deformation.
規格參數：
| 機床系列 Type | PG2840 | PG2840-S | PG3270 | PG4070 | PG50150 |
| 外徑 Diameter | Φ5-Φ280mm | Φ5-Φ280mm | Φ10-Φ320mm | Φ20-Φ400mm | Φ40-Φ500mm |
| 長度 Length | 400mm | 400mm | 700mm | 700mm | 1500mm |
| 模數 Module | 0.5-6mm | 0.5-6mm | 0.5-8mm | 0.5-12mm | 1-20mm |
| 工件長度 Part Length | 70-500mm | 70-500mm | 90-700mm | 90-700mm | 150-1600mm |
| 螺旋角 Helix Angle | ±45° | 0° | ±45° | ±45° | ±45° |
| 最高精度 Max Precision | DIN1 | DIN2 | DIN2 | DIN3 | DIN3 |
| 量產精度 Production Precision | DIN4 | DIN4 | DIN5 | DIN5 | DIN5 |
| 數控軸數 CNC axes No. | 6 | 4 | 6 | 6 | 6 |
|
工件重量 Gear Weight 選配 Option |
50kg | 50kg | 100kg | 120kg | 300kg |
| 滾刀刃磨 Hob Resharpening | √ | 直槽Straight Gash | √ | √ | |
| 斜插刀刃磨 Shaper Resharpening | √ | NO | √ | √ | NO |
| 高速磨削 High Speed Grinding | √ | √ | √ | √ | √ |
| 在線測量 Online Checking | √ | √ | √ | √ | √ |
| 自動對齒 Auto Engaging | √ | √ | √ | √ | √ |
| 大理石床身 Granite Base | √ | NO | √ | √ | NO |
| 三截面修形功能 BIAS Correction | √ | NO | √ | √ | √ |
*國際先進設計理念， 精度高， 效率高， 穩定性好。
*齒形多段修形， 齒向鼓形量修形和錐度修形。
*具有扭曲修正功能， 能根據數學模型計算出三截面誤差以及修正軌跡， 以數控多軸聯動進行補償， 實現齒輪的三截面誤差修正。
*支持雙面磨削和單面磨削。
*采用發格頂級數控系統。程序直接集成在操作界面， 使用輕松方便。
*High precision, high efficiency, high stability.
*Gear profile modification, lead modification.
*Machine is able to produce targeted BIAS corrections. The amount of correction is easily selected as an input item in the software.
*Supporting double-flank grinding and single-flank grinding.
* Equipped with Fagor top CNC system. The operation software is set in the pannel directly for easy data communication.
